Lyon Township Wastewater Treatment Plant (Lyon Township, Oakland County)
Please contact the Site Lead for the most up-to-date status of this site.
These plants receive residential, commercial, and sometimes industrial wastewater that may contain PFAS. Conventional wastewater treatment plants are not designed to treat for PFAS, therefore PFAS may pass through the treatment system to surface waters (i.e., lakes, rivers, etc.) and groundwater. EGLE is actively working with these wastewater treatment plants to address PFAS.
For more information, please see the Wastewater Workgroup page.
EGLE site lead
Sydney Ruhala, RuhalaS@Michigan.gov or 517-599-5356.
Background
The Lyon Township Wastewater Treatment Plant (WWTP), located at 53656 Ten Mile Road, discharges treated wastewater to the groundwater under a state Groundwater Discharge Permit issued to Lyon Charter Township (township). The treatment system consists of sequencing batch reactors and a chemical feed system. The final treated effluent is discharged to the groundwater on-site via rapid infiltration basins (i.e., sand beds) located in two discharge areas (i.e., the eastern and western rapid infiltration basins). The WWTP also has an approved Industrial Pretreatment Program (IPP), which requires industrial dischargers that send their wastewater to the WWTP, to use treatment techniques and management practices to reduce or eliminate the discharge of harmful pollutants to the sanitary sewers. The IPP is designed to protect the municipal WWTP and the environment.
As part of a statewide sampling effort, EGLE sampled the WWTP's influent, effluent, final treated solids, and four groundwater monitoring wells for PFAS in Fall 2021.
Estimated groundwater flow direction across the eastern rapid infiltration basins and WWTP is to the northwest, west, or southwest depending on location, while estimated groundwater flow direction across the western rapid infiltration basins is to the southwest.
Content posted August 2022.

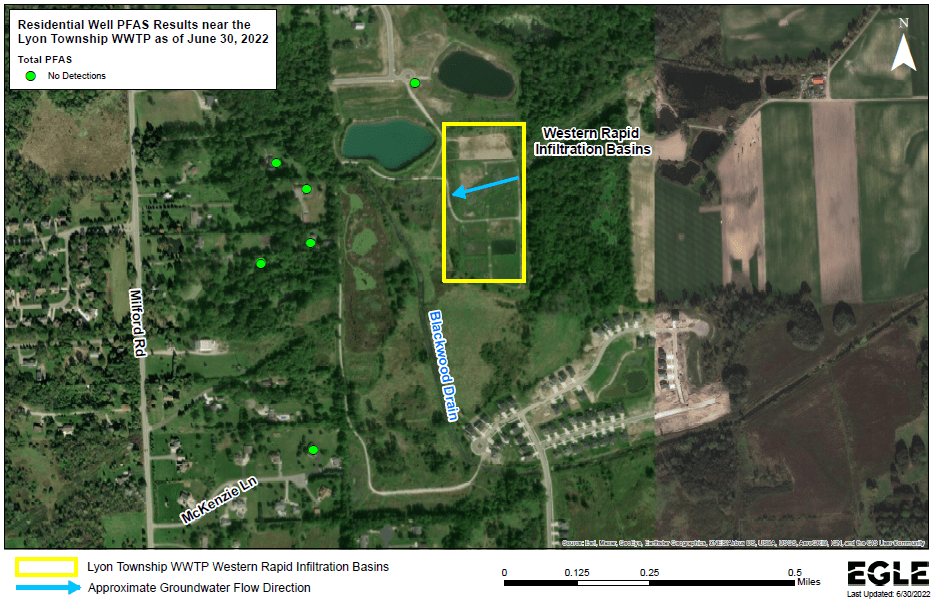

Drinking water map
See an aerial view of the drinking water of the site.

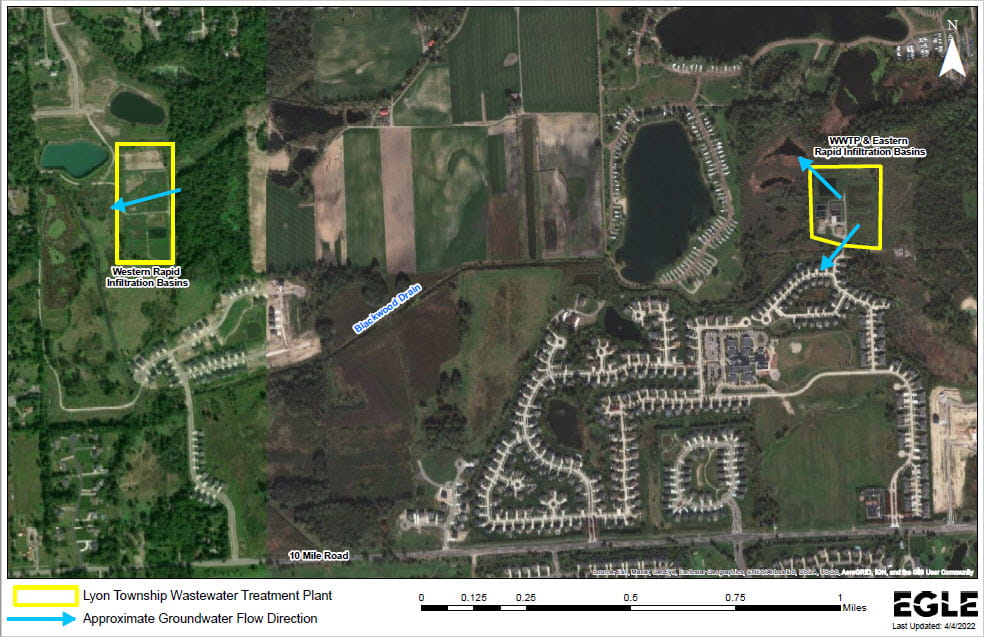

Site map
See an aerial view of the location of the site.
Drinking water
EGLE will continue to work with the Michigan Department of Health and Human Services (MDHHS), the Oakland County Health Department, and the township to evaluate residential wells in the area and expand residential drinking water well testing if determined to be necessary.
Anticipated activities
EGLE will continue to work with the township to determine the extent of PFAS contamination in groundwater at the WWTP. EGLE will continue to work with the township to determine potential sources of PFAS to the WWTP and implement source reduction controls under their IPP.
Historical timeline
-
2021 - 2022
- On November 3, 2021, EGLE contractors sampled the influent, effluent, final treated solids, and four downgradient groundwater monitoring wells for PFAS at the WWTP as part of a statewide sampling effort.
- On January 19, 2022, EGLE received the sampling results. All four monitoring wells exceeded groundwater cleanup criteria for PFOA. The highest result was 40.1 ppt PFOA. Two of the monitoring wells were located downgradient from the eastern rapid infiltration basins and two were located downgradient from the western rapid infiltration basins.
- On May 5, 2022, the township resampled the four groundwater monitoring wells sampled in November 2021. All four monitoring wells exceeded criteria for PFOA. The highest result was 34 ppt PFOA. The township also collected a surface water sample from the Blackwood Drain, upstream of the WWTP. PFAS was not detected in the surface water sample.
- On May 19, 2022, the township collected a sample of water from one residential well. PFAS was not detected in the well.
- On May 31, 2022, the township sampled two additional groundwater monitoring wells. Both monitoring wells exceeded criteria for PFOA. The highest result was 23 ppt PFOA.
- On June 14-16, 2022, the township collected samples of water from four residential wells and one test well. PFAS was not detected in the five wells.
Sampling Results Summary
Type of Sample
Date Sampled (or Range)
Number of Sample Results Received
Number of Samples above Criteria*
Groundwater Monitoring Wells
November 2021 - May 2022 6 6 Residential Wells May 2022 - June 2022 6 0 Surface Water May 2022 1 0 *Residential well and groundwater monitoring well results are compared to EGLE Part 201 criteria for 7 PFAS compounds effective 12/21/2020: PFOS (16 ppt), PFOA (8 ppt), PFNA (6 ppt), PFHxS (51 ppt), PFHxA (400,000 ppt), PFBS (420 ppt), and HFPO-DA (370 ppt).
*Surface water samples are compared to Rule 57 non-drinking water values of 12 ppt for PFOS, 170 ppt for PFOA, and 670,000 ppt for PFBS.Sampling Notes
- None at this time.
